Passenger Boarding Bridge

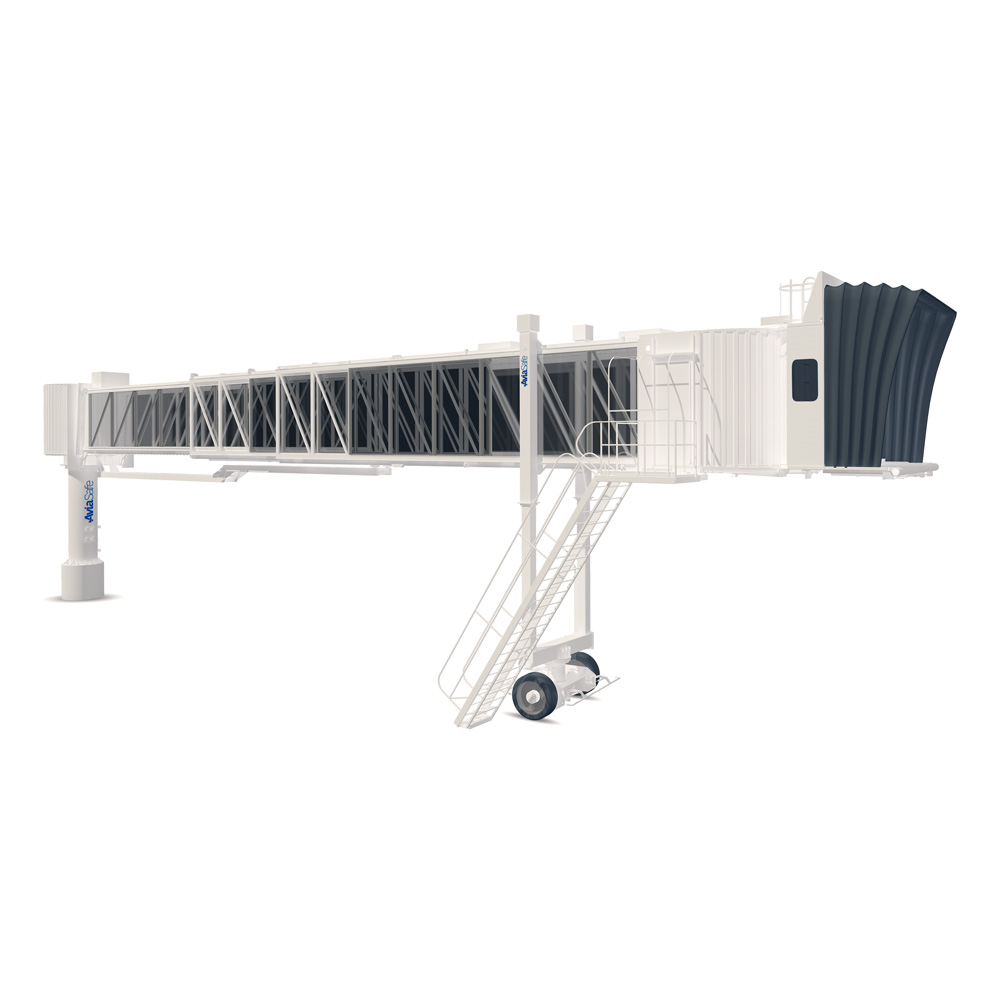

AviaBridge 3T
"3-Tunnel" Glass & Steel Wall Passenger Boarding Bridge
APPLICATION
- Apron Docking & Boarding
COMPLIANCE with
- International Civil Aviation Organization (ICAO) and in particular Annex 14
- Federal Aviation Administration (FAA) AC No. 150/5220-21C
- American Society of Testing Materials (ASTM)
- International Electric Committee (IEC)
- US National Electrical Manufactures Association (NEMA)
- US National Fire Protection Association (NFPA417)
- American Welding Society (AWS)
- Steel Structures Painting Council (SSPC)
- Society of Automotive Engineers (SAE)
AviaBridge "3-Tunnel" General Information
| TYPE | Fully Extended | Fully Retracted | Travel | Max OP Limit | Min OP Limit |
| 3T- 20/11 | 20.0m | 11.5m | 8.5m | 18.4m | 12.4m |
| 3T-23/13 | 23.5m | 13.0m | 10.5m | 21.9m | 13.9m |
| 3T-27/14 | 27.0m | 14.5m | 12.5m | 25.4m | 15.4m |
| 3T-30/16 | 30.5m | 16.0m | 14.5m | 28.9m | 16.9m |
| 3T-34/17 | 34.0m | 17.5m | 16.5m | 32.4m | 18.4m |
| 3T-37/19 | 37.5m | 19.0m | 18.5m | 35.9m | 19.9m |
| 3T-41/20 | 41.0m | 20.5m | 20.5m | 39.4m | 21.4m |
| 3T-44/22 | 44.5m | 22.5m | 22.5m | 42.9m | 22.9m |
DESIGN PARAMETRS
Dimensional Charasteristics: (Minimum Dimesions)
| Tunnels (Minimum "A" tunnel only) |
Rotunda Interface | |||||
| Floor | Width | 1.5m | Width | 1.5m | ||
| Interior | Height | 2.1m | Height | 2.2m | ||
| Inerior Cab | Width | 3.5m | ||||
OPERATIONAL CHARACTERISTICS
| Rotunda Swing | 175°(87.5°cw/87.5°ccw of centerline) | ||||
| Cab rotation | 122.5°(90°ccw/32.5cw) | ||||
| Cab roation speed | 3°/sec. | ||||
| Vertical rate of travel/lift | Automatic | 0.9m/min | |||
| Manual | 1.5m/min | ||||
| Horizontal rate of travel | 0~0.4m/s | ||||
| Environmental Charastristics | |||||
| Bridge operations at tempretures from -20°C to 50°C | |||||
| Power Requirements | |||||
| 380 VAC , 3 Phase , 50 Hz | |||||
